DISCOVER DEVICE® Professional Tattoo Power Supply HP-5 DISCOVER DEVICE® Professional Tattoo Power Supply HP-5

€66,95
Availability: 100 In Stock
Add to wishlist
Add to compare
Description Description

Discover Professional Tattoo Power Supply HP-5 Power Supply

Introduction:

  • Model: Thunerlord TP-5
  • Material: Plastic Shell
  • Display: LCD Digital
  • Unit Weight: 650g
  • Input voltage: 110V-240V, AC50/60Hz.
  • Output Voltage: 3~18v
  • Output Power: 0.3-45W
  • Rating Current: 0-2A.
  • Operating Temperature: 5 ~ +45 ℃
  • Relative humidity 30%~75%.
  • Operating Air Pressure: 900-1060 HPA

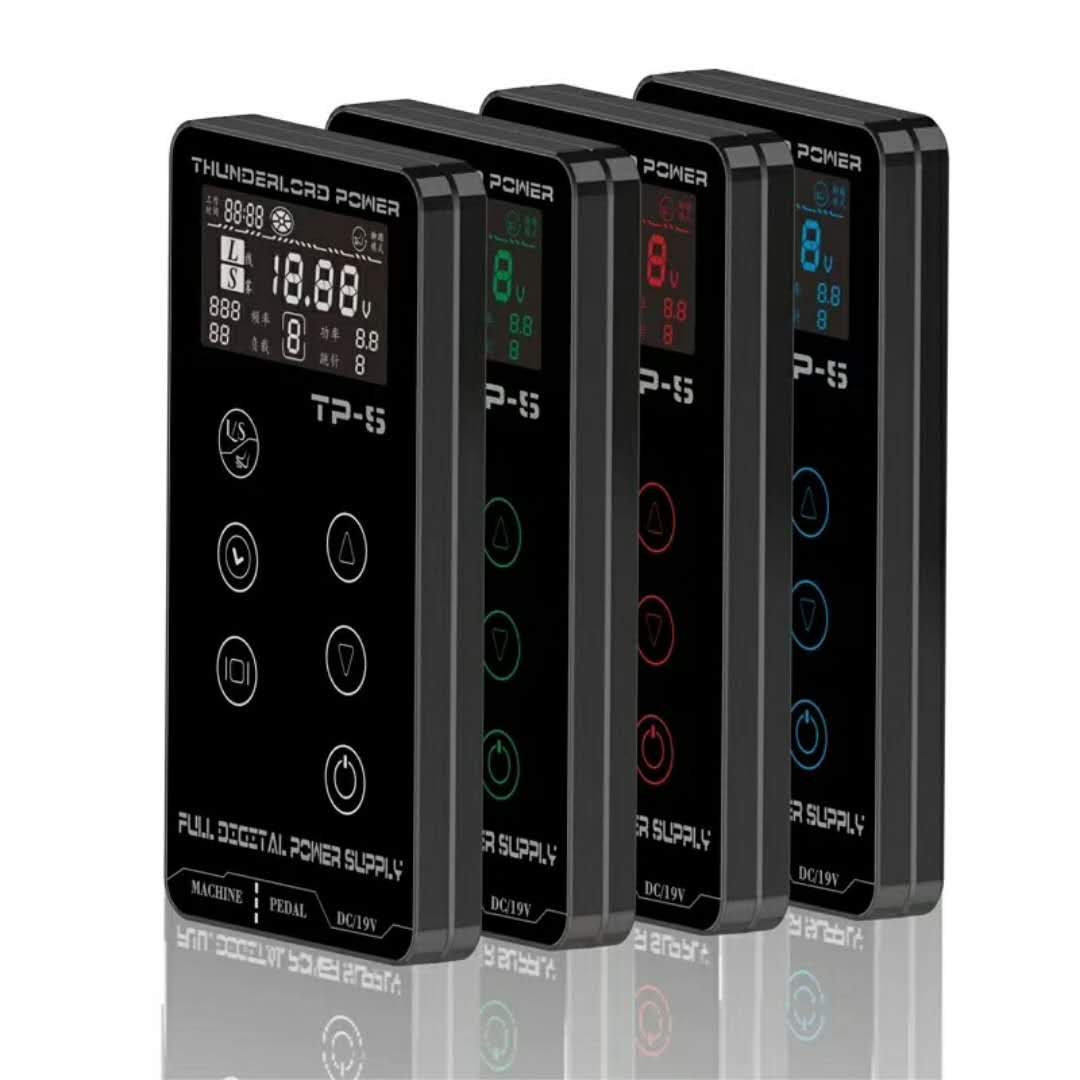

  • Color: Blue, White, Red, Green
  1. Liner/ Shader presets with memory modes.
  2. Momentary(conventional) or Maintained(push on push off) foot switch modes. Easy one button toggle
  3. Non volatile memory (holds time and presets even when power is removed)
  4. Wireless foot switch ready (foot switch under development)
  5. Volts, Amps, Speed (hz), Duty Cycle (%), ans STL(similar to follow through)
  6. Wipe down quality
  7. Easily bagged with typical machine or bottle baggies
  8. Power supply includes one universal mount

Advantages:

  • Fully digital microprocessor control
  • Precision regulated set point voltage 3-18VDC
  • Plugin the power: Please use standard adapter connect to power supply through"DC/19" socket


Switch ON/OFF and START/STOP functions:
A:When plugged into the power supply, press"POWER BUTTON" for 3 seconds to             switch on, or another 3 seconds to switch off.
B: 5 seconds press on foot pedal to switch on, when switch on, touch "POWER                  BUTTON"" to start/stop the power

Adjust the output voltage:
when switched on, touch "VOLTS+" "VOLTS-" to adjust the voltage output

L/S & Foot Pedal Moodle:

  1. When switched on, touch "L/S BUTTON" switch to L/S model, when switch to L model, L be lighted, switch to model S will be lighted.
  2. when switched on, press "L/S BUTTON" for 3 seconds to change the foot pedal model
  3. This machine offer two kinds of foot pedal mood, one is contineous output mood, another is inching output mood


Preset voltage:
This machine provides 6 preset voltage under mood of L/S, the factory settings:

  • L1-5V/L2-6V/L3-7V/L4-8V/L5-9V/L6-9.5V
  • S1-6V/S2-6.5V/S3-7.5V/S4-8.5V/S5-9.5V/S6-10V
  1. Touch "PRESET BUTTON" swith successively to preset voltage, to adjust the preset voltage.
  2. Touch "PRESET BUTTON" to adjust the voltage gears.
  3. Touch "VOLTS+" "VOLTS-" to adjust voltage, then press "PRESET BUTTON" for 3 seconds to save the preset voltage.

Package Includes:

  • 1 Power Supply
  • 1 Power Cord
  • 1 set of holder parts

Warranty:

  1. One year warranty for principle machine
  2. Three months warranty for adapter,Power supply cord and other accessories



Discover Professional Tattoo Power Supply HP-5 Power Supply

Introduction:

  • Model: Thunerlord TP-5
  • Material: Plastic Shell
  • Display: LCD Digital
  • Unit Weight: 650g
  • Input voltage: 110V-240V, AC50/60Hz.
  • Output Voltage: 3~18v
  • Output Power: 0.3-45W
  • Rating Current: 0-2A.
  • Operating Temperature: 5 ~ +45 ℃
  • Relative humidity 30%~75%.
  • Operating Air Pressure: 900-1060 HPA
  • Color: Blue, White, Red, Green
  1. Liner/ Shader presets with memory modes.
  2. Momentary(conventional) or Maintained(push on push off) foot switch modes. Easy one button toggle
  3. Non volatile memory (holds time and presets even when power is removed)
  4. Wireless foot switch ready (foot switch under development)
  5. Volts, Amps, Speed (hz), Duty Cycle (%), ans STL(similar to follow through)
  6. Wipe down quality
  7. Easily bagged with typical machine or bottle baggies
  8. Power supply includes one universal mount

Advantages:

  • Fully digital microprocessor control
  • Precision regulated set point voltage 3-18VDC
  • Plugin the power: Please use standard adapter connect to power supply through"DC/19" socket


Switch ON/OFF and START/STOP functions:
A:When plugged into the power supply, press"POWER BUTTON" for 3 seconds to             switch on, or another 3 seconds to switch off.
B: 5 seconds press on foot pedal to switch on, when switch on, touch "POWER                  BUTTON"" to start/stop the power

Adjust the output voltage:
when switched on, touch "VOLTS+" "VOLTS-" to adjust the voltage output

L/S & Foot Pedal Moodle:

  1. When switched on, touch "L/S BUTTON" switch to L/S model, when switch to L model, L be lighted, switch to model S will be lighted.
  2. when switched on, press "L/S BUTTON" for 3 seconds to change the foot pedal model
  3. This machine offer two kinds of foot pedal mood, one is contineous output mood, another is inching output mood


Preset voltage:
This machine provides 6 preset voltage under mood of L/S, the factory settings:

  • L1-5V/L2-6V/L3-7V/L4-8V/L5-9V/L6-9.5V
  • S1-6V/S2-6.5V/S3-7.5V/S4-8.5V/S5-9.5V/S6-10V
  1. Touch "PRESET BUTTON" swith successively to preset voltage, to adjust the preset voltage.
  2. Touch "PRESET BUTTON" to adjust the voltage gears.
  3. Touch "VOLTS+" "VOLTS-" to adjust voltage, then press "PRESET BUTTON" for 3 seconds to save the preset voltage.

Package Includes:

  • 1 Power Supply
  • 1 Power Cord
  • 1 set of holder parts

Warranty:

  1. One year warranty for principle machine
  2. Three months warranty for adapter,Power supply cord and other accessories
